Docklight Tap

Scroll Prev Top Next More

Docklight Tap is a full-duplex RS232 communications monitoring solution for the USB port.



Area of Application: Monitoring serial communications between two devices



Docklight has built-in support for the Docklight Tap. It recognizes the dual port USB serial converter and offers high-speed, low-latency access to the monitoring data. Use Docklight Monitoring Mode and Receive Channel settings TAP0 / TAP1. See the Docklight Project Settings and How to Obtain Best Timing Accuracy for details.



Please also see our product overview pages for more information about the Docklight Tap.

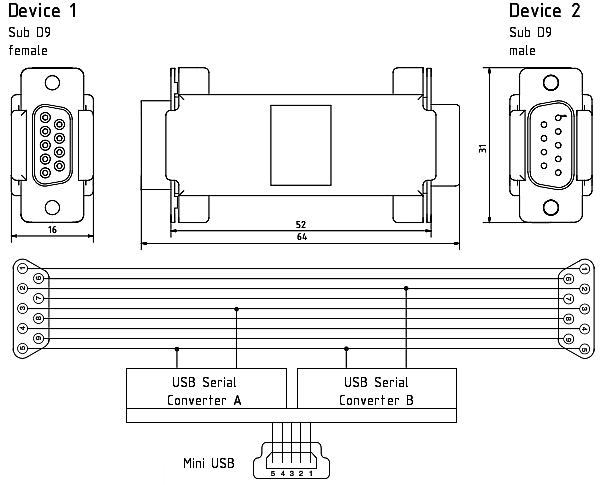

docklight_monitoring_tap_schematic
